For Models: Maverick Trail 1000 (2018-2022)
1. Install the bumper on the vehicle by sliding it into place through the stock cutouts in rear plastics.

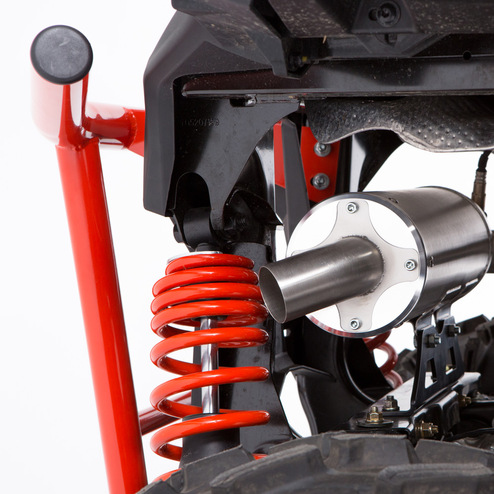

2. Use the supplied (4) M8-1.25x20 Allen Bolts, (8) ¼" Flat Washers and (4) M8-1.25 Nylock Nuts to bolt the two upper brackets of the bumper to the holes in the frame of the vehicle. DO NOT TIGHTEN.(See Figure #1)

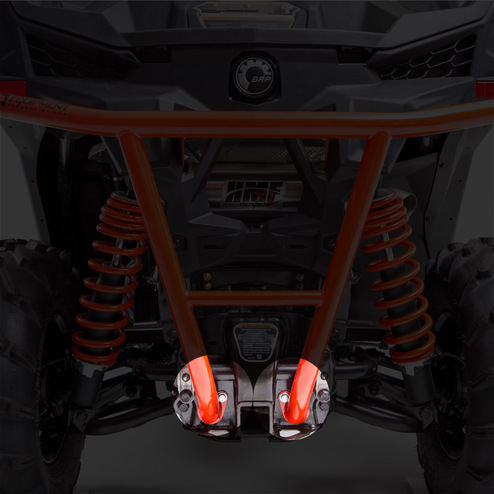

3. Install the (2) M8-1.25x20 Hex Bolts, (4) ¼" Flat Washers, and (2) M8-1.25 Nylock Nuts to the lower portion of the vehicle's frame. DO NOT TIGHTEN. (See Figure #2)

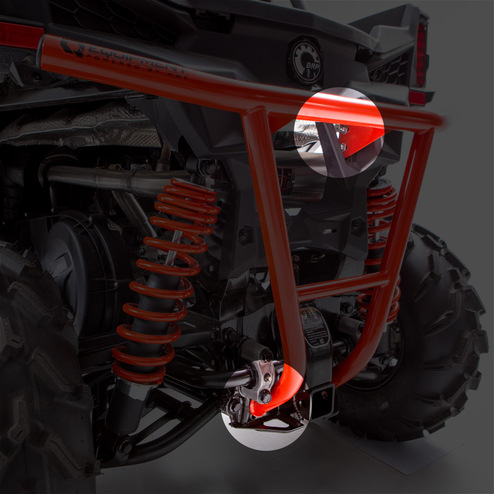

4. Center and level the bumper then tighten the upper four bolts then the lower two.(See Figure #3)
