HMF Racing Billet Backplate - Can-Am® Maverick X3 MAX Instructions

For Models: Maverick X3 MAX (2017-2022)

Installation

1. Ensure that the machine is on level ground with wheels chalked.

2. Lift machines up with jack to remove tension on radius rods.

3. Loosen the (6) stock bolts from the original backplate and remove.

4. Install Billet backplate using the (6) stock bolts and torque to factory specifications.(See Figure #1)

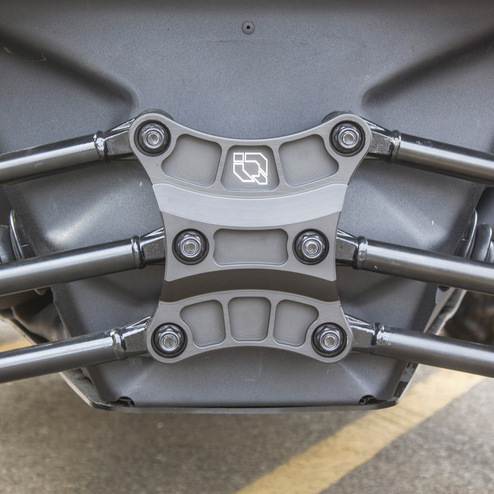

Billet Backplate - Can-Am® Maverick X3 MAX Instructions - Figure 1
