HMF Racing Glove Box Panel, Can-Am® Maverick X3 MAX Instructions

For Models: Maverick X3 MAX (2017-2022)

Installation

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 1

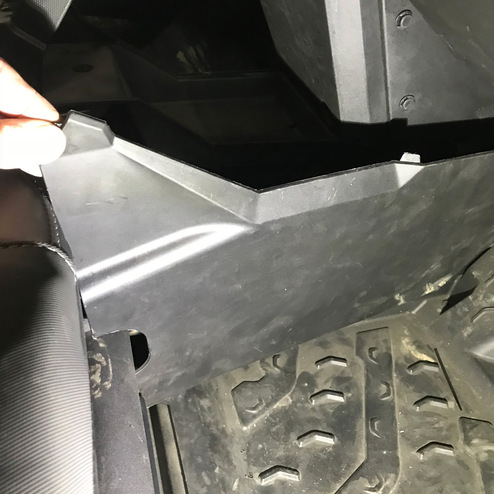

1. Remove side panels from the front of center console. (both sides)(See Figure #1)

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 2

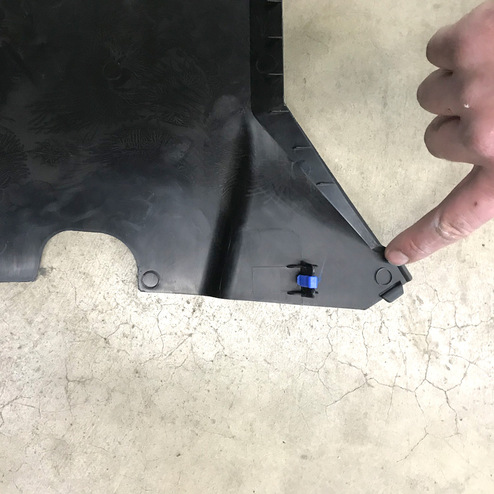

2. Flip over and locate the corner circles on the backside of the plastic panels.  (both sides)(See Figure #2)

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 3

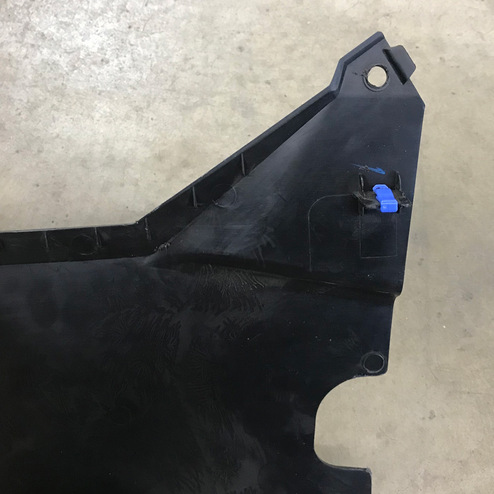

3. Drill 3/8" hole (both sides)(See Figure #3)

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 4

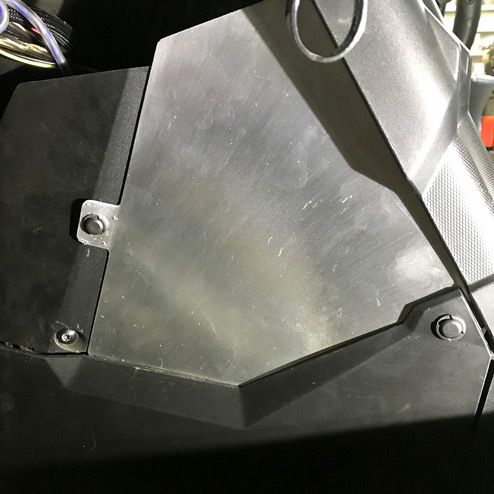

4. Install factory side panel then slide the HMF IQ Equipment Glove Box side panel into place and install the rear push pin. (Both sides)(See Figure #4)

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 5

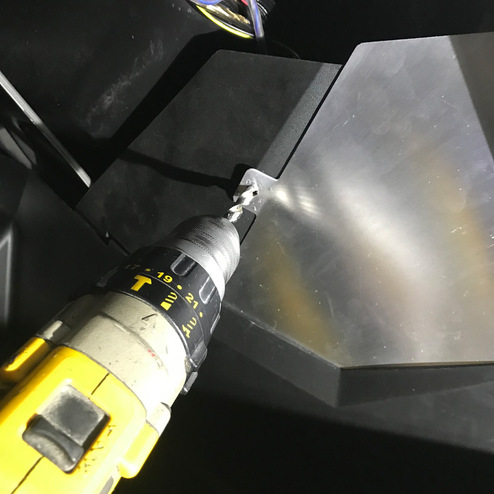

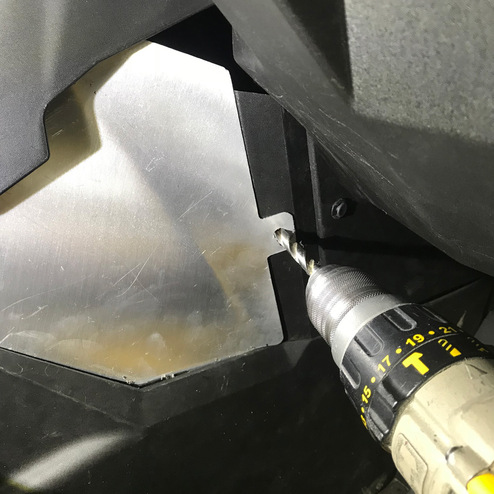

5. Making sure the new panel is sitting in the correct location drill second 3/8" hole through the plastic and install punch pin. (Both sides)(See Figure #5)

Glove Box Panel, Can-Am® Maverick X3 MAX Instructions - Figure 6
