Exhaust Systems Can-Am® Maverick XDS Turbo

Print Instructions

HMF Racing Apex Intrusion Full Shield, Can-Am® Maverick Turbo Instructions

For Models: Maverick XDS Turbo (2016-2017)

Installation

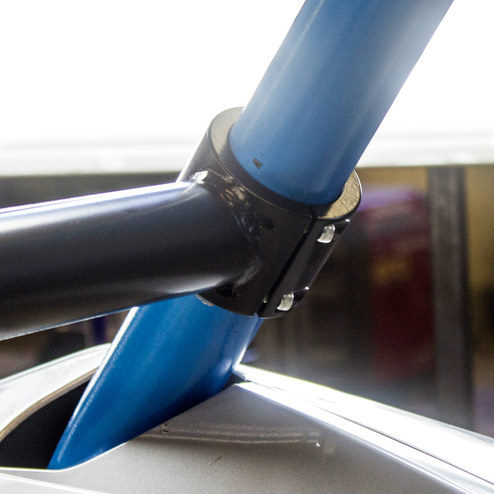

Apex Intrusion Full Shield, Can-Am® Maverick Turbo Instructions - Figure 1

1. Slide the Apex Intrusion Bar into position on the Cage(See Figure #1)

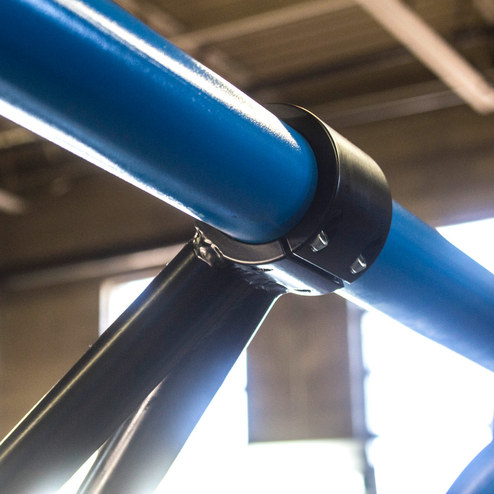

Apex Intrusion Full Shield, Can-Am® Maverick Turbo Instructions - Figure 2

2. Starting with the Top Cage Clamp (Figure 2), install (4) Bolt - Allen - M6x20 Bolts.  Do Not Tighten.(See Figure #2)

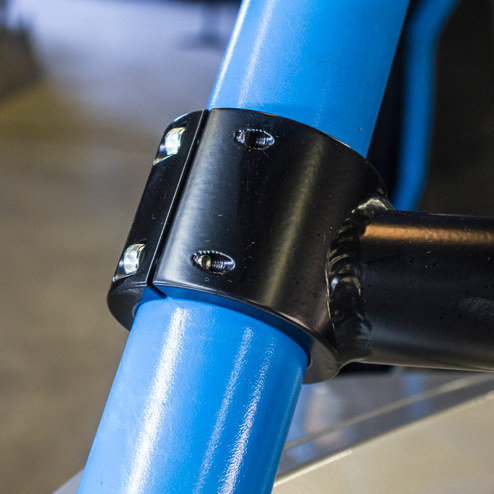

Apex Intrusion Full Shield, Can-Am® Maverick Turbo Instructions - Figure 3

3. Install (8) Bolt - Allen - M6x20 Bolts.Adjust and align the (2) Side Cage Clamps and tighten all bolts to a snug fit in a criss cross pattern.(See Figure #3)

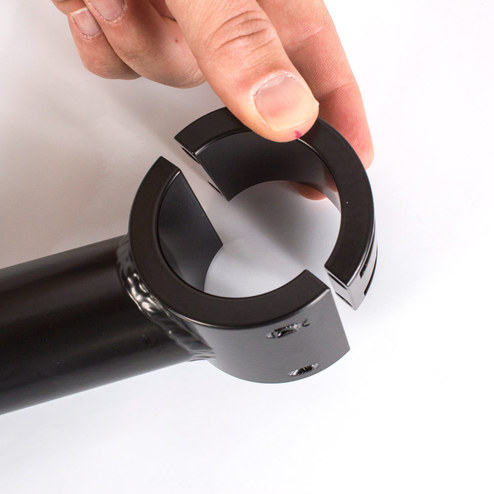

Apex Intrusion Full Shield, Can-Am® Maverick Turbo Instructions - Figure 4

4. Confirm alignment and tighten all the bolts on the Cage Clamps.
