Can-Am Maverick R Paddle Shifters Installation Instructions

Removal

1. Remove OEM Paddle Shifters - Using a T15 Torx Bit and Hand Tool, carefully remove the (3) Torx Screws for each paddle shifter.

Note: Use a hand tool to ensure you do not strip these screws.

Installation

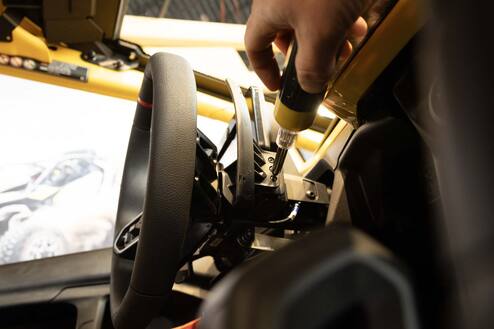

2: Install Paddle Shifters - Position the HMF Paddle Shifters in one of three hole locations on the HMF Paddle Shifter. Carefully tighten the screws, but leave room for final adjustment.(See Figure #1)

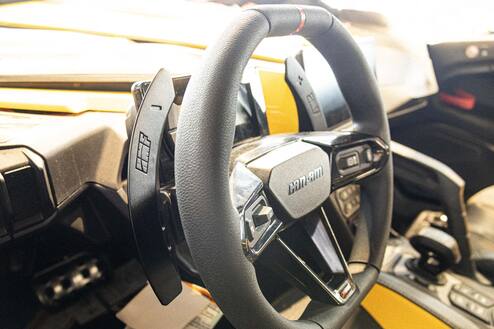

3. Test Fit and Function - Once you finalize location, carefully tighten the torx screws for a secure fitment.

Note: Always double-check paddle clearance when wheel is turned full left or right.

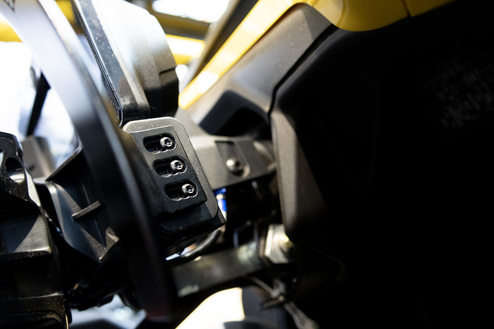

(See Figure #2)
