Can Am Maverick XDS Turbo Dump Pipe Installation Instructions

Removal

1. Be sure the vehicle is parked on a level surface with the transmission in the park position, and the engine completely cooled down.

2. Loosen the clamps for the stock mufflers and remove the cotter pins from the top mounting hangers.  Pull back and twist to remove the stock mufflers.

3. Remove the Rear and two side intercooler shrouds along with the turbocharger heat shield.

4. Remove the stock down pipe.  Save the (3) 8mm nuts, you will need these with the installation of the 3 inch race pipe.

Installation

1. Be sure the original down pipe flange gasket is still on the turbocharger.

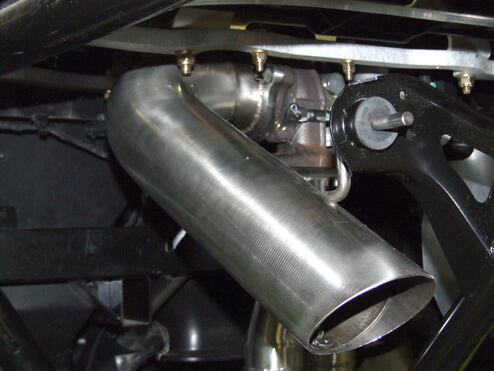

2. Slide the 3" Race Pipe over the studs on the turbocharger while aligning the hanger with the rubber gromet.(See Figure #1)

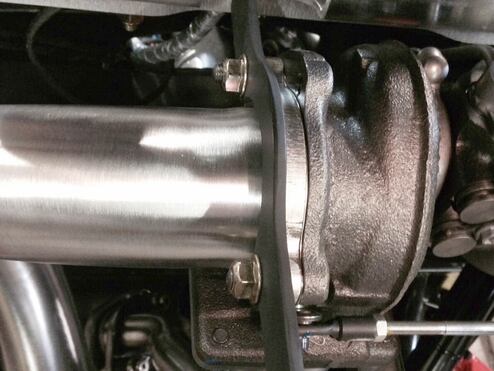

3. Install the original 8 mm nuts on the turbocharger studs and torque them to OEM Specifications.(See Figure #2)

4. Install the original turbo charger heat shield along with the rear and 2 side intercooler shrouds.
