Euro Inserts Installation Instructions

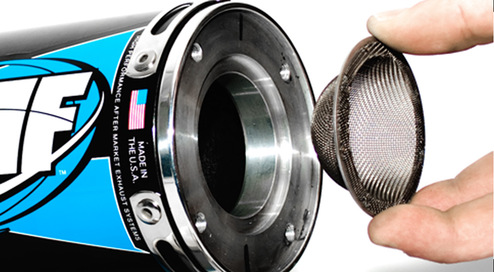

1. Installing the Spark Arrester
When installing the Spark Arrestor, make sure the arched side is facing in. The HMF Spark Arrestor is removable. (See Figure #1)

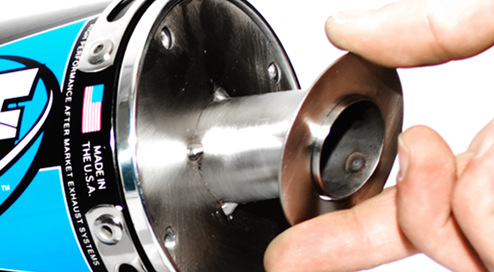

2. Installing the Insert
Simply loosen the 4 allen screws on the Euro End Cap and choose which insert you want to use. Place the insert on the exhaust, lining up all 4 holes.(See Figure #2)

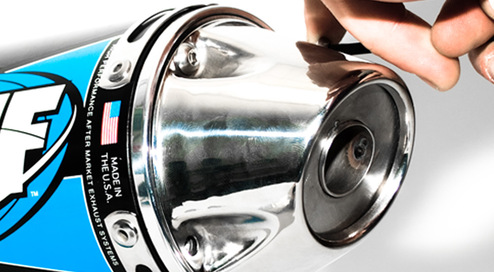

3. Installing the End Cap
Place the Euro End Cap over the insert and line up all 4 holes. Install each screw, but don’t completely tighten until all 4 are snug. Once you’ve completely tightened all the screws you’re ready to ride.
