HMF // XD4500 Winch // Installation Installation Instructions

Installation

Installation and Safety Manual

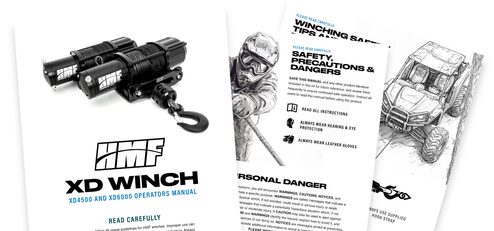

The HMF Winch Installation & Safety Manual is available for download as a PDF. This guide covers everything you need to know, including electrical installation, winch setup, proper winching techniques, safety precautions, and best practices.

Click to download the installation manual

Please Read Carefully

Ensure you follow all usage guidelines for HMF winches. Improper use can result in severe damage to your machine or serious personal injury. Always read the manual, use the correct mounting points, and avoid exceeding the winch’s load capacity to stay safe and protect your investment.

Installatiion Safety

• Always choose a mounting location that is strong enough to withstand the maximum pulling capacity of your winch.
• Always use class 8.8 metric (grade 5) or better hardware.
• Never weld mounting bolts.
• Always use factory approved mounting hardware, components, and accessories.
• Always confirm required bolt length to ensure proper thread engagement.
• Always complete the winch installation and hook attachment before installing the wiring.
• Always keep hands clear of winch rope, hook loop, hook, and fairlead opening during installation and operation.
• Always pre-stretch rope and respool under load before use. Tightly wound rope reduces chances of binding, which can damage the rope.
