Polaris RZR Turbo R 4 Rock Sliders Installation Instructions 1. Begin by removing the Outer most Skid Plate Hardware (5x10mm bolts and 2xT40 torx bolts) to allow access to the back side of the mounting points .
1. With the skid plate loosened, pre install the provided (4x Aluminum Spacers) into the mounting points on the frame.
2. To aid in installation Pre install the provided (M10-1.5x120 Hex Bolts, 3/8" Flat Washers) into at least two of the Rock Slider mounting points.
3. Hang the Rock Slider on the vehicle using the preinstalled hardware to hold the Rock Slider in place.

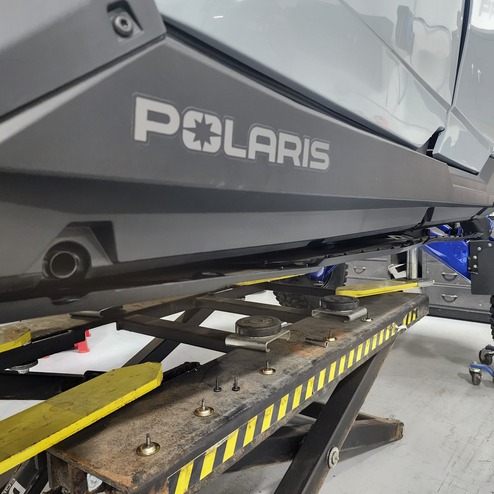

4. With the Rock Slider in place. insert the rest of the supplied (M10-1.5x120 Hex Bolts, 3/8" Flat Washers) then loosely secure them in place using the supplied (M10-1.5 Nylock Nuts and 3/8" Fender Washers).(See Figure #1)

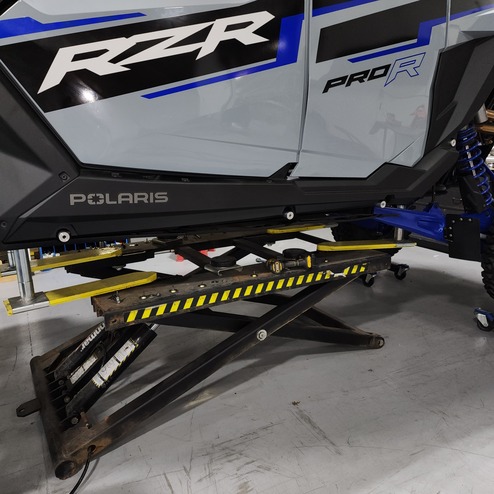

5. The back side of the Upper Rear Mounts can be accessed behind the rear passenger seats.(See Figure #2)
6. With all components and hardware in place make any final adjustments and tighten all hardware.

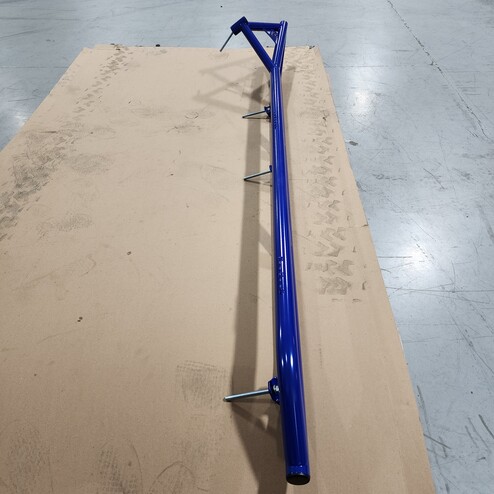

7. Resecure the Skid Plate with the Factory Hardware and install the supplied (1.75" bumper Cap) into the upper rear mount.(See Figure #3)
8. Repeat steps 1-7 for the other side of the vehicle.
