Polaris RZR XP 4 1000 Rear Bumper 24-26 Installation Instructions

For Models: RZR XP 4 1000 (2024-2026)

Installation

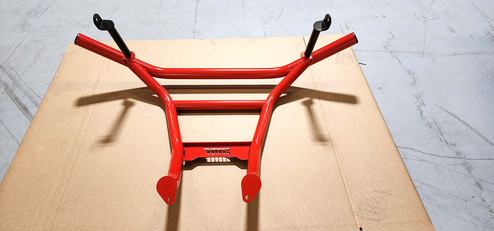

1. Pre-install Support Tubes onto HMF Rear Bumper using supplied (2) M8-1.25x20, (2) 1/4” Flat Washers (See Figure #1)

- Figure 1

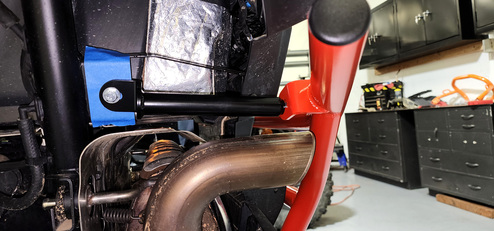

2. Using (2) M8-1.25x25, (4) 1/4" Flat Washers and (2) m8-1.25 Nylock Nuts loosely hang the bumper on the machine using the upper mounting points. (See Figure #2)

- Figure 2

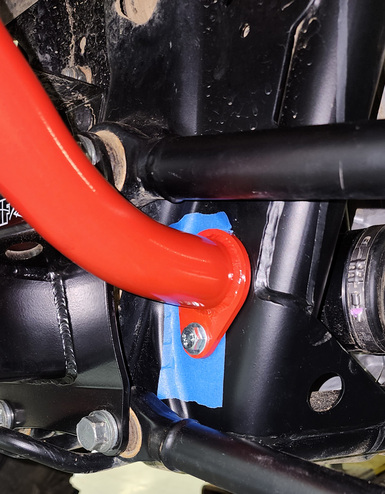

3. Using (2) M8-1.25x25, (4) 1/4” Flat Washers and (2) M8-1.25 Nylock Nuts Loosely secure lower mounting points.(See Figure #3)

- Figure 3

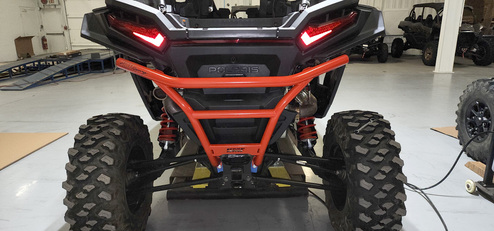

4. With all hardware and components in place, adjust and align the bumper and tighten all hardware.(See Figure #4)

- Figure 4

Discussion

Hardware

(2) 400030 - Bolt - Hex - M8-1.25 X 20
(4) 400028 - Bolt - Hex - M8-1.25 X 25
(4) 400015 - Nut - Nylock - M8-1.25
(10) 400073 - Washer - Flat - 1/4"

* Click thumbnails to enlarge

Figure #1

Figure #2

Figure #3

Figure #4

(2) Bolt - Hex - M8-1.25 X 20

(4) Bolt - Hex - M8-1.25 X 25

(4) Nut - Nylock - M8-1.25

(10) Washer - Flat - 1/4"
