Polaris RZR XP S 1000 HD Hitch Receiver Installation Instructions

Installation

1. Place the HD Receiver Hitch over the rear of the machine and insert all (4) bolts through the backplate, radius rods, and frame in the same configuration as the stock backplate.

NOTE: A small amount of medium strength loctite is recommended between the bolt and nut to prevent it from backing off while riding.

2. Snug all (4) bolts but do not fully tighten at this point.

3. Lower the rear of the vehicle and cycle the rear suspension allowing it to settle.  Make sure the radius rods are not binding between the frame and backplate.

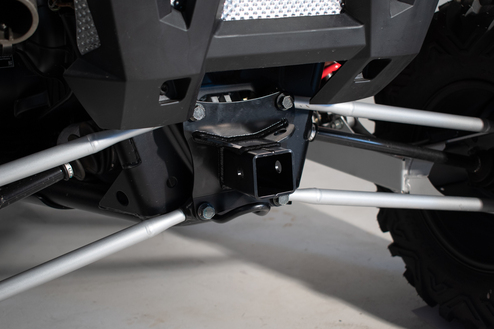

4. Tighten all (4) bolts to the factory specification.  (See Figure #1)
