Polaris RZR XP S 4 1000 LT Front Bumper Installation Instructions

Removal

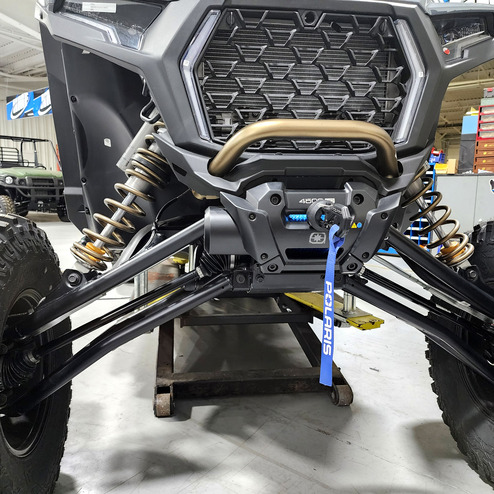

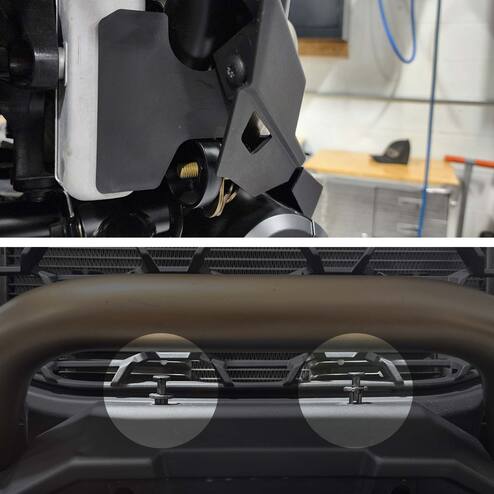

1. Begin by removing the (2) plastic rivets, and (2) Torx bolts securing the Plastic front bumper fascia to the vehicle.

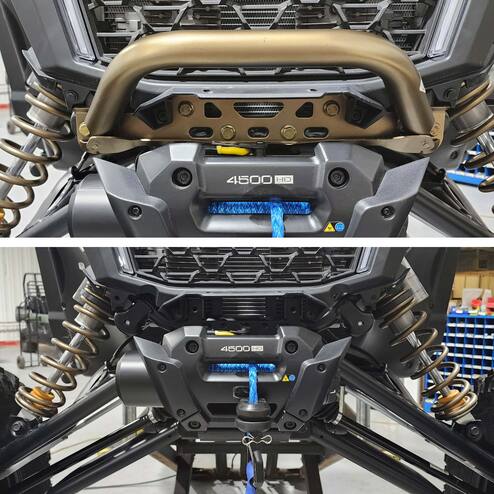

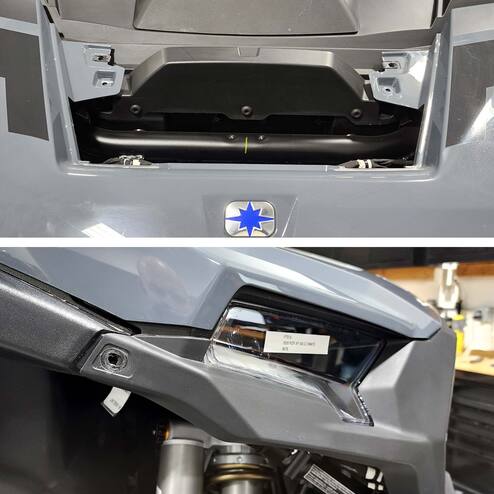

2. Next remove the (2) torx bolts securing the lower grill to the factory bumper, the (6) bolts securing the bumper to the vehicle, and remove the factory bumper. (Note: It may be necessary to remove the center hood panel to allow access and loosen the hood bolts.  This will help in removal of the factory bumper)


3. Finally remove the (2) Factory bolts securing the lower winch support bracket to the frame.

Installation

1. Begin the installation by placing the HMF LT Front Bumper in place with the upper mounting plate behind the tabs of the lower front grill mounts.

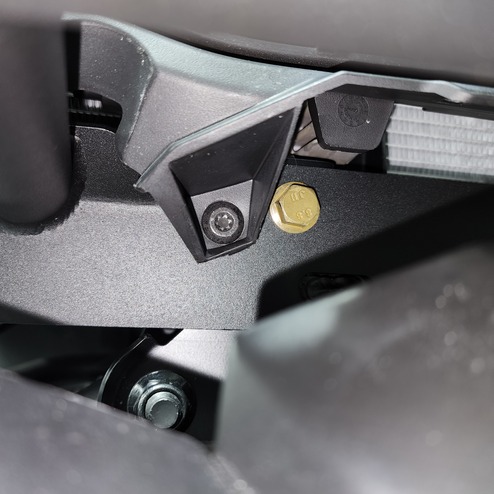

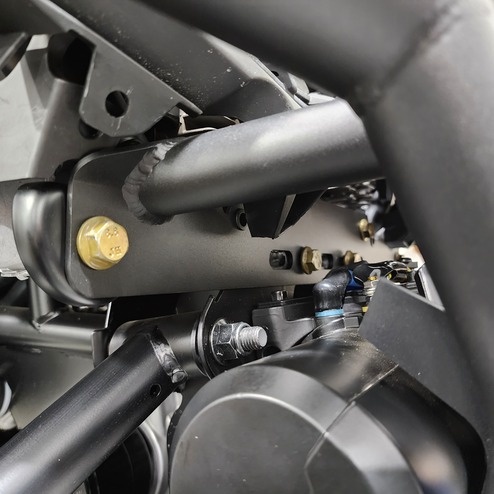

2. Loosely hang the HMF LT Front Bumper using the (6) factory bolts then resecure the lower grill mounts to the new bumper with the factory torx bolts that were removed in step 2 of the removal process.

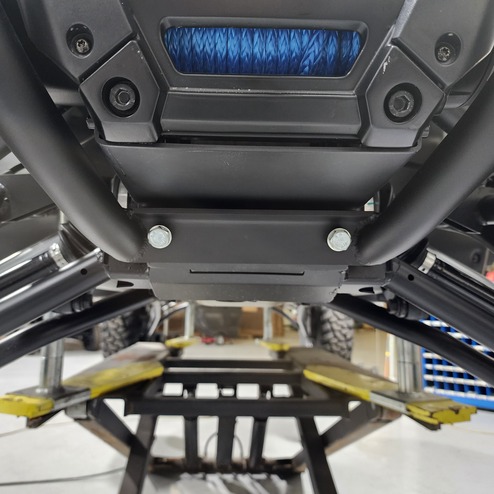

3. With the HMF LT Front Bumper hanging in place use the provided (2) M10-1.5x25 Hex Bolts, (2) 3/8" Flat Washers to secure the lower mounting bracket to the vehicle.

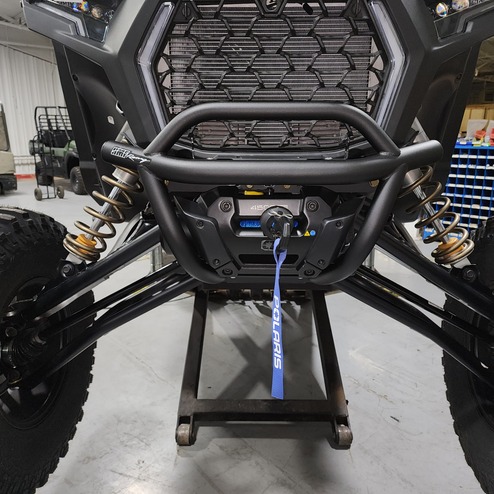

4. With all components in place make any final positioning adjustments and tighten all hardware.
